Plate And Tube Integrated Laser Cutting Machine

Your Professional Plate And Tube Integrated Laser Cutting Machine Supplier

Shandong Leize Intelligent Technology Co., Ltd., is a high-tech enterprise integrating scientific research, development, manufacturing and marketing.The industrial chain of RAYTHER covers Laser Cutting Machine, Laser Welding Machine ,Laser Cleaning Machine ,Laser Marking Machine, Laser Engraving Machine, Automation and Supporting equipment, etc.

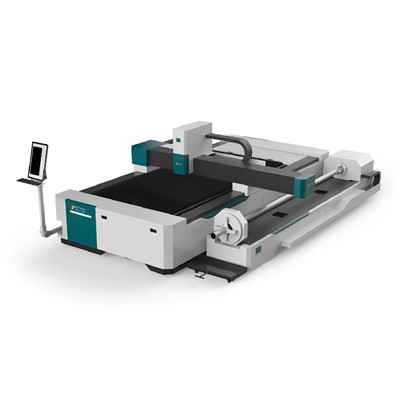

Plate And Tube Integrated Laser Cutting Machine

Why Choose Us

Cutting edge technology
The company has a team of highly skilled professionals that are dedicated to researching and developing cutting-edge machinery that can meet the needs of modern industrial applications. Whether you are looking for a laser cutter, or any other type of CNC equipment, RAYTHER has the technology that you need.

Complete certificates
We provide CE FDA ISO SGS and other certificates for our company and products.

Excellent customer service
Of course, even the best CNC equipment can run into problems sometimes. That is why it is essential to work with a company that offers excellent customer service. Whether you need help troubleshooting a problem, or just want advice on how to get the most out of your equipment, the company's team of knowledgeable and friendly professionals are available to assist you, provide technical support for customers 24 hours a day.

Professional team
RAYTHER' s unique management philosophy guides the thoughts and actions of all RAYTHER associates.
We are a team full of responsibility and passion for customers, advocating learning and being good at innovation. Innovation, sincere cooperation, sincere service, advocating a win-win situation, and ensuring the fastest time and best service.

Advantages of Plate And Tube Integrated Laser Cutting Machine

High precision: The traditional pipe cutting adopts manual methods, so each cut part is different, while the laser processing uses the same fixture system, the processing design is completed by the programming software, and multiple processing steps are completed at one time, with high precision. In modern manufacturing, precision is of the utmost importance, and laser processing makes every part the same size. 　

High speed: The laser can cut several meters of pipe in one minute, which is hundreds of times faster than the traditional manual method, which means that the laser processing is fast. 　　

Flexibility: Laser can flexibly process various shapes, and designers can carry out complex designs, which is unimaginable under traditional processing methods. 　　

Batch processing: The standard pipe length is 6 meters, and the traditional processing method requires very heavy clamping, and laser processing can easily complete the clamping and positioning of several meters long pipe, which makes batch processing possible.

Specification

Item	Main Specification
Brand	Rayther - LZ 301SG
Laser Power	1500W/3000W/6000W/12000W/20000W/60000W
Working Area	Plate : 3000X1500MM,6000X2500MM etc , Tube 3M / 6M etc . customized sizes are welcomed
Cutting Thickness	0.2-50mm
Cutting Speed	1-50m
Cooling Way	Water cooling
Processing Material	Stainless steel/carbon steel/galvanized steel/aluminum/copper/iron and all kinds of metal
Laser Head	BOCI / Raytools/HAN'S
Laser Source	Raycus/MAX/HAN'S etc.
Control system	BOCHU / FSCUT Bus Control System

Working Components of Plate And Tube Integrated Laser Cutting Machine

Laser Source
The laser source generating the high intensity of laser beam which providing the energy required for the processing and determining the cutting speed & accuracy. After it emit the material, causes instant melting or evaporation to cut off the required design from the material.

Cutting Head
The cutting head is designed with nozzles to deliver the laser beam to the material. It also has additional features such as automatic height control to protect the workpiece from the deformation and sensing systems to maintain the optimal cutting conditions. Also, has automatic focus function to calculate the exact focal length.

CNC Controller
The computer numerical control (CNC) system is responsible for controlling the entire cutting process. Receiving codes from the users, converting into machine readable code then controlling the head movement & other functioning components and helps for continuous repeatable cuts.

Worktable
The working table is designed sturdy flat surface for the material being cut. It also has automated loading and unloading systems to enhance productivity.

Chuck
The automatic pneumatic chuck is designed for realizing of quick clamping that rotating and driving the workpiece for the operation. It can handle thin to thick walled pipes, featured with automatic centering in the rear & front end and higher repeat positioning accuracy.

Control Panel
The control panel is using to interact with the machine easily, gives a user-friendly interface by inputting the processing parameters and monitoring the operation. Helps for perfect operation, highly reliable to get the exact pattern and improves the human & machine contact.

Cooling System
The cooling system is using to cool the laser source & other components, maintains the temperature and ensuring its longevity & performance. It has an overheat protection system to protect from thermal deformation and prevents from the material wastage during operation.

Plate And Tube Integrated Laser Cutting Machine features

Small size, light weight, suitable for outdoor work, low energy consumption, no need for drawing and simple operation;

Can open inside, outside, “X” and “Y” groove, suitable for the center of the pipe is not good;

Double sprocket structure has a longer life, flexible track is rough for steel pipe and has strong deformation adaptability.

What Types Of Materials Can The Integrated Fiber Plate And Tube Integrated Laser Cutting Machine

01/

Stainless Steel
Known for its corrosion resistance and strength, stainless steel is commonly used in the food, medical, and construction industries.

02/

Carbon Steel
Widely used in structural applications, carbon steel is favored for its high strength and durability, making it ideal for construction and manufacturing.

03/

Aluminum
Lightweight and resistant to corrosion, aluminum is used in the automotive and aerospace industries. Fiber lasers offer precision cuts that maintain the integrity of the material.

04/

Brass
This alloy of copper and zinc is often used in electrical components and decorative items. The fiber laser's efficiency ensures clean cuts without damaging the material.

05/

Copper
With excellent conductivity, copper is essential in electrical applications. Fiber lasers can handle copper cutting with high precision and minimal dross.

06/

Titanium
Known for its strength-to-weight ratio and resistance to extreme temperatures, titanium is critical in aerospace and medical applications. The machine can cut titanium efficiently while maintaining high quality.

How It Plate And Tube Integrated Laser Cutting Machine Works

Material Loading: The operator loads flat plates or tubular components onto the machine’s worktable. Automated loading systems can also be integrated for continuous operation.

Design Setup: The desired cut pattern is uploaded via CAD software. The system’s software translates the design into machine commands, optimizing paths for efficiency.

Laser Activation & Positioning: The laser source is activated, and the machine’s multi-axis system positions the laser head precisely over the material, aligning with the design specifications.

Cutting Process: The laser beam is directed onto the material, melting or vaporizing it along the designated paths. For tubes, the system adjusts to cut around cylindrical surfaces, ensuring accuracy.

Cooling & Debris Removal: During cutting, a assist gas (like nitrogen or oxygen) blows away molten material, ensuring clean cuts and preventing heat buildup.

Unloading & Inspection: Once the process completes, finished parts are removed. Automated inspection systems may verify dimensions and quality before proceeding to the next batch.

FAQ

Q: What should I do if the cutting quality is poor？

A: If you notice rough edges, burrs, or an uneven cut surface, several factors could be at play. First, check the focal length; an incorrect focus can lead to sub - par results. Adjust it according to the thickness and type of the material you're cutting.

Q: Why is the laser power insufficient?

A: If the laser output power is low, making it difficult to cut through materials or slowing down the cutting speed, start by checking the laser. Over time, its performance and lifespan may decline, so regular maintenance and calibration are necessary.

Q: What is the reason for the device alarm or automatic shutdown?

A: When the equipment alarms or stops suddenly during operation, the electrical system is a likely culprit. Check for loose wiring or faulty components in the electrical system and fix or replace them as needed. Regular maintenance of all parts, including the laser, cooling system, optical system, and drive system, can prevent such malfunctions.

Q: Will the insufficient skills of operators affect the use of laser cutting machines?

A: Yes, unfamiliarity with the equipment among operators can lead to low cutting efficiency or frequent malfunctions. To solve this, organize regular equipment operation training to enhance operator skills.

As one of the most professional plate and tube integrated laser cutting machine manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy high-grade plate and tube integrated laser cutting machine from our factory.
